Central systems

Turnkey drying and material-supply installations — from system design and 3D planning to installation. From a single source.

A central system supplies several dryers and production machines from a shared material store — fully engineered, planned in 3D and installed turnkey. It is a product in its own right that qip designs together with you: from needs analysis through plant layout to commissioning, with every component matched precisely to your production.

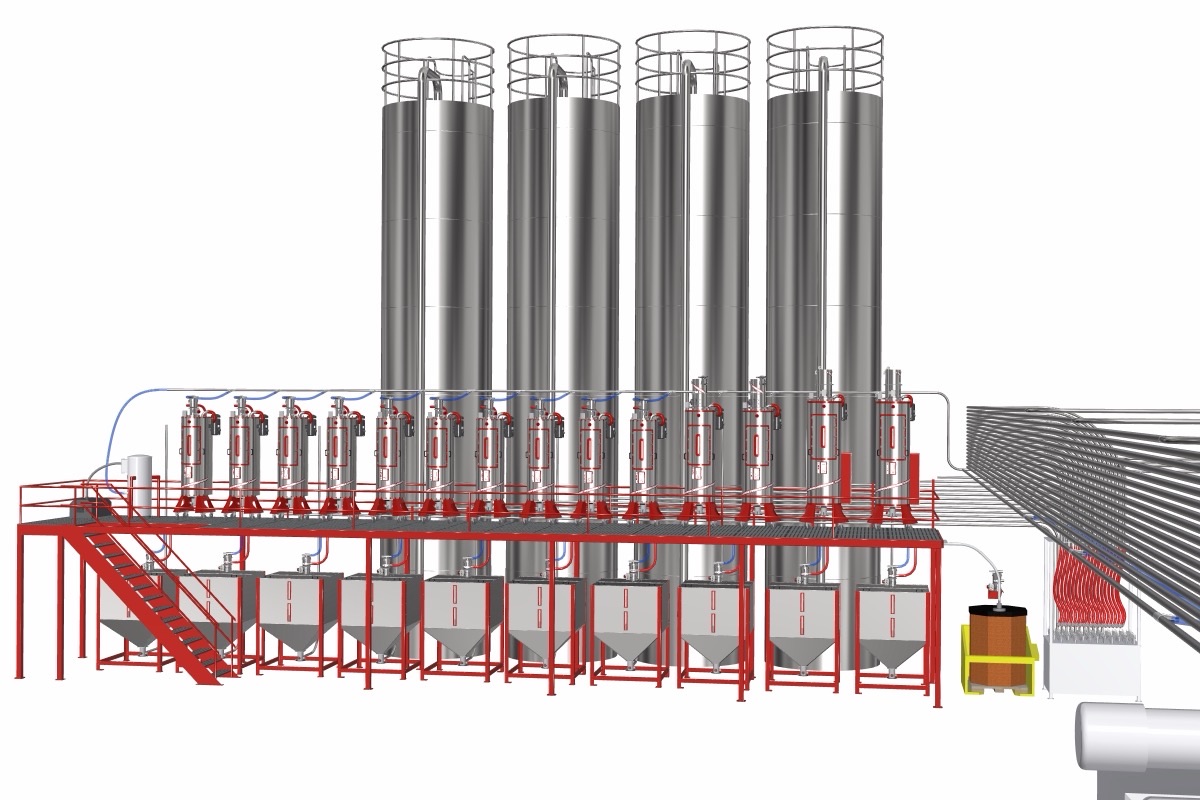

qip central system — silo storage with a central row of dryers Central system
Turnkey

Central drying & material supply

Engineered · planned in 3D · installed

Central conveying stations with a wide range of separator types are the answer when several machines must be supplied with granules over longer distances. They are engineered together with the customer, supported by 3D-CAD planning, and installed on request.

Depending on the application, the right material separators are selected — for dusty regrind, abrasive compounds or mixing two materials. A central vacuum pump generates the vacuum for several separators, and dust is collected centrally.

01 / What a central system includes

  • System design & needs analysis
  • 3D-CAD planning & plant layout
  • Central control
  • Dryers (two-circuit & compressed air)
  • Conveying — material separators, vacuum pump, conveying & vacuum lines
  • Material storage — silos & containers
  • Material distribution station
  • Commissioning & service

Delivered installations

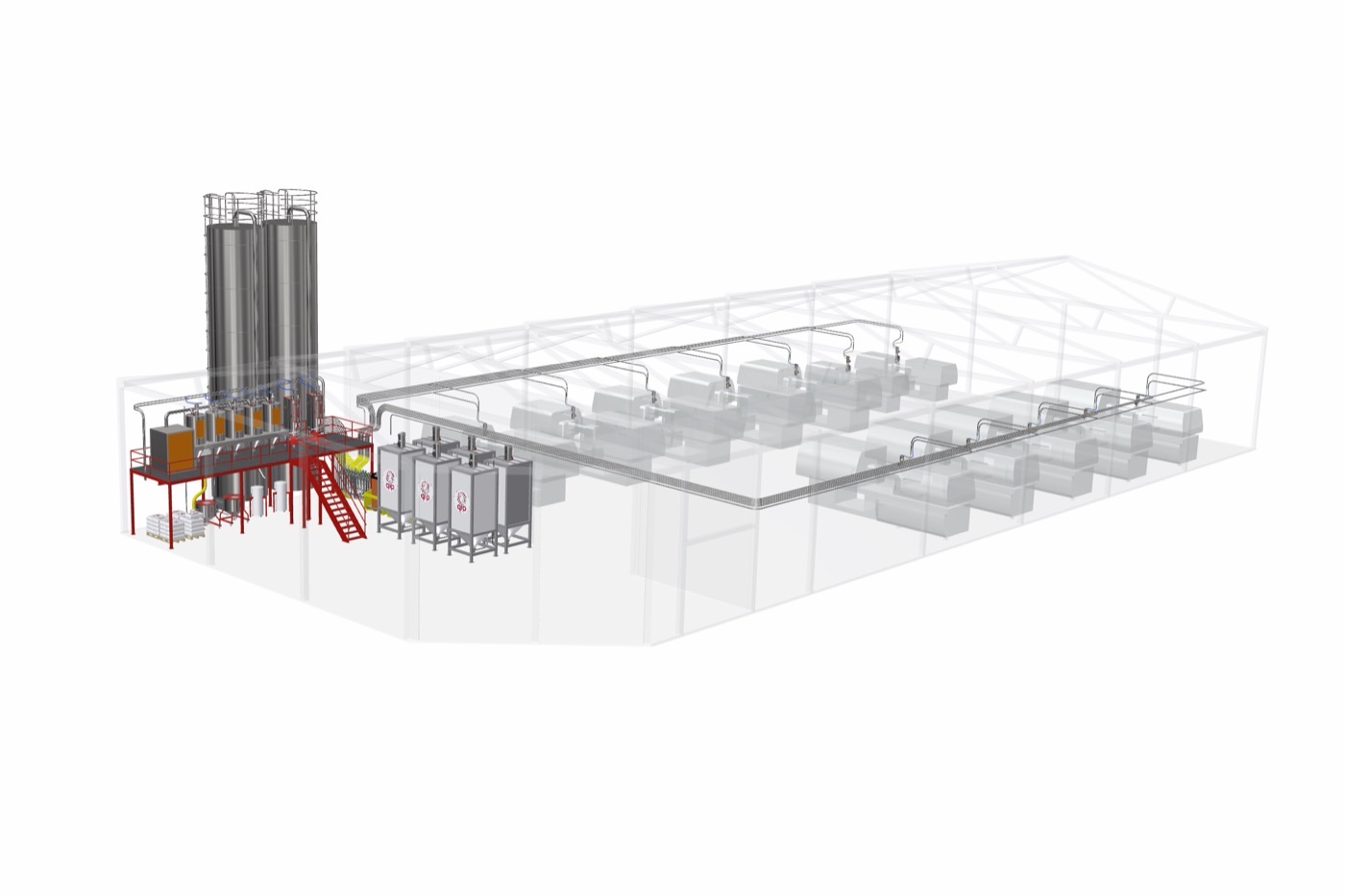

Turnkey hall installation with central drying and material distribution
Turnkey hall installation — central drying and material distribution across the whole production floor.

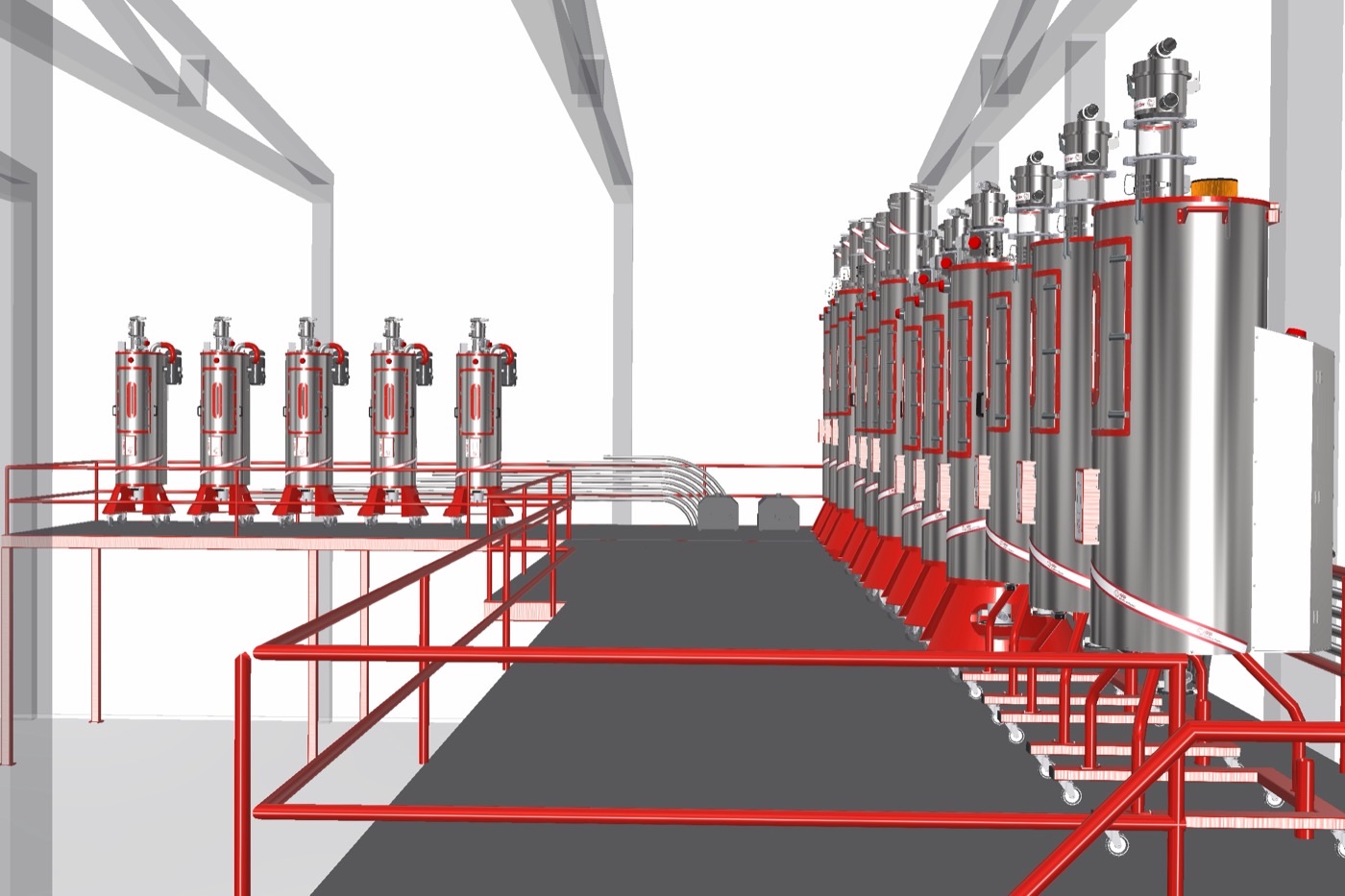

Material platform with silo storage and a row of dryers
Material platform with silo storage, a row of dryers and a central material station.

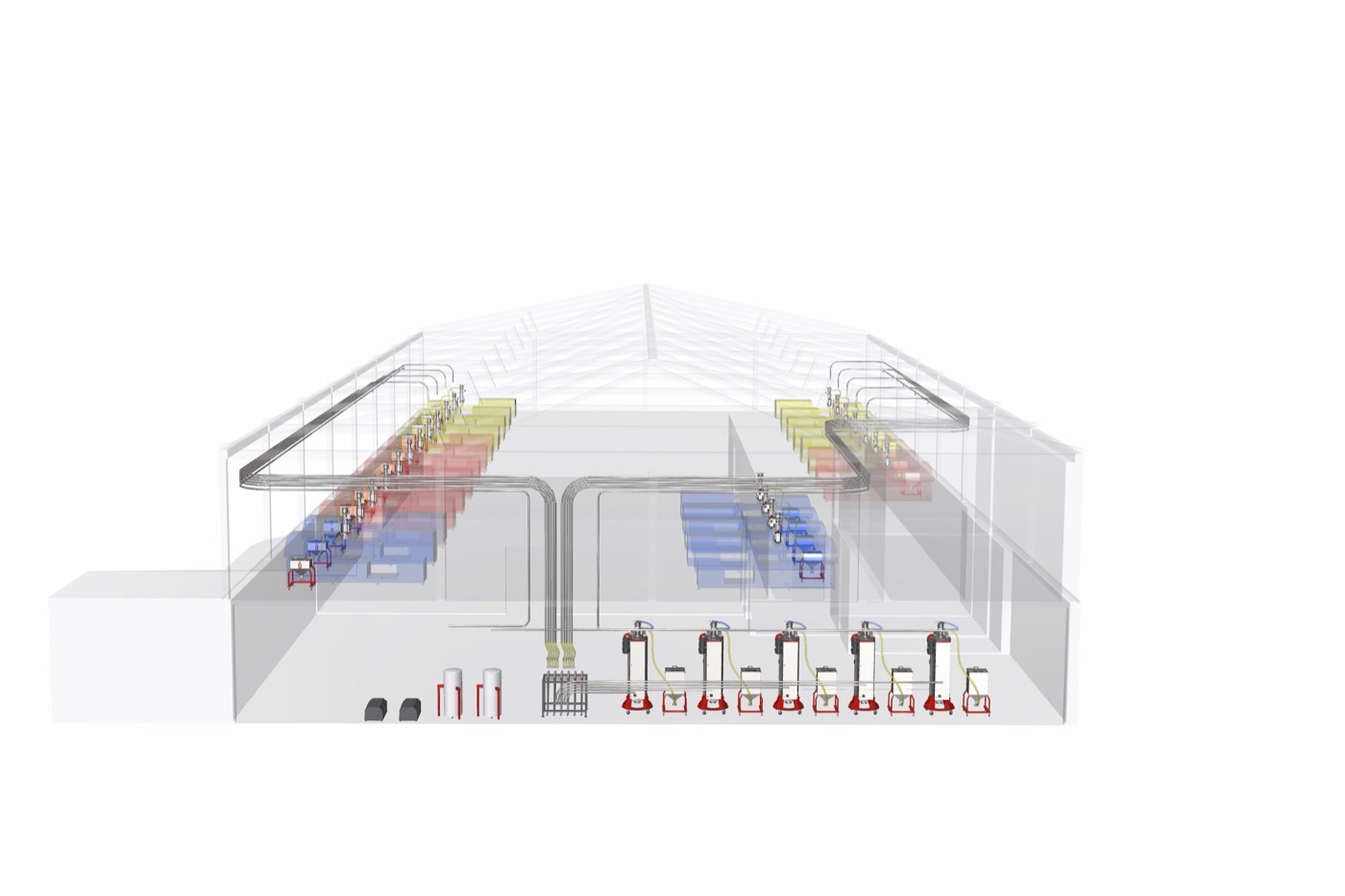

Central loading and drying system shown as a building cross-section
Central loading and drying system — the material path from storage to machine, shown as a building cross-section.

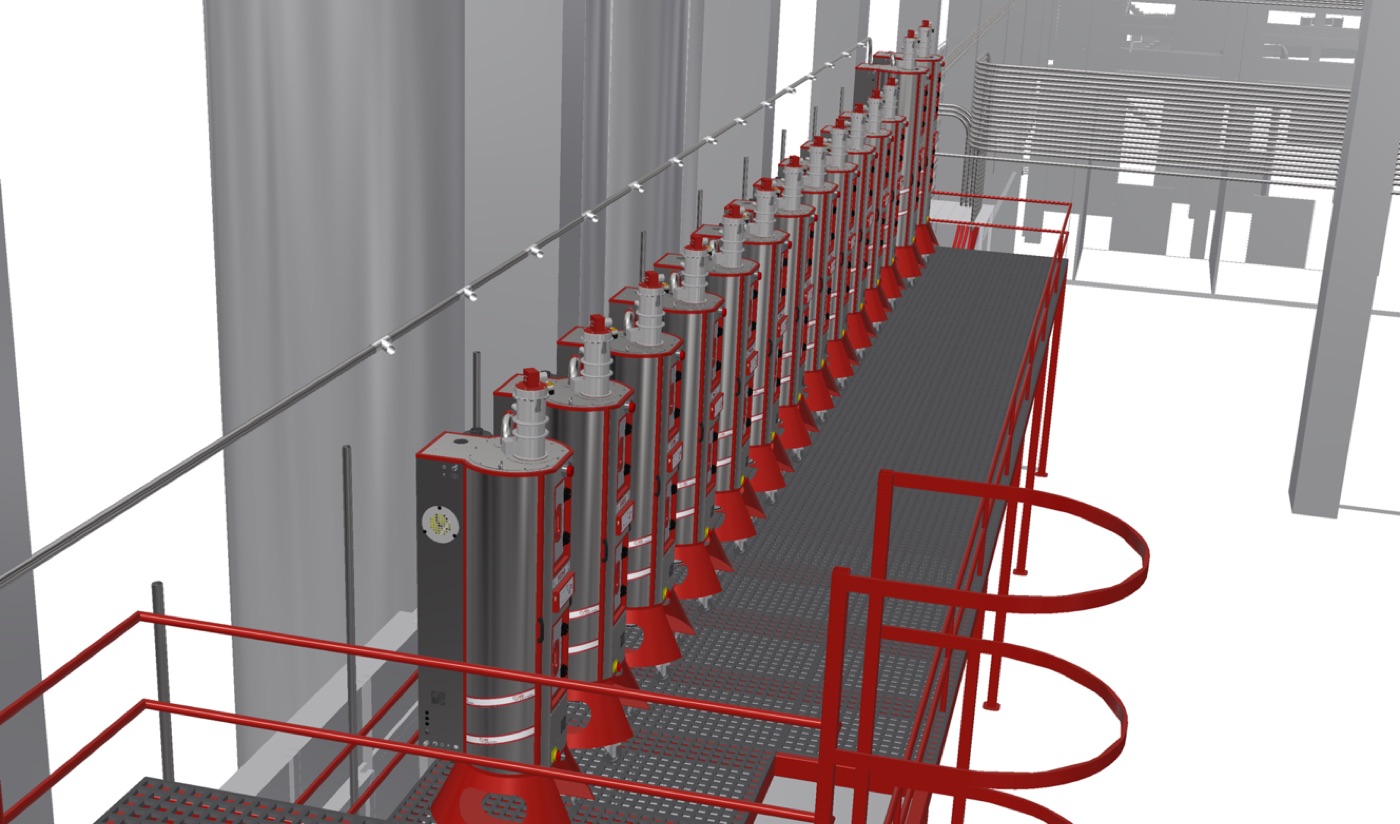

Row of dryers on a central material platform
Row of dryers on a central material platform with a walkable operating gangway.
Also interesting The vacuum-operated material separators of the CL range — the heart of material conveying in every central system — are on the Conveying overview page. The central material store is covered by the Material Storage containers.
